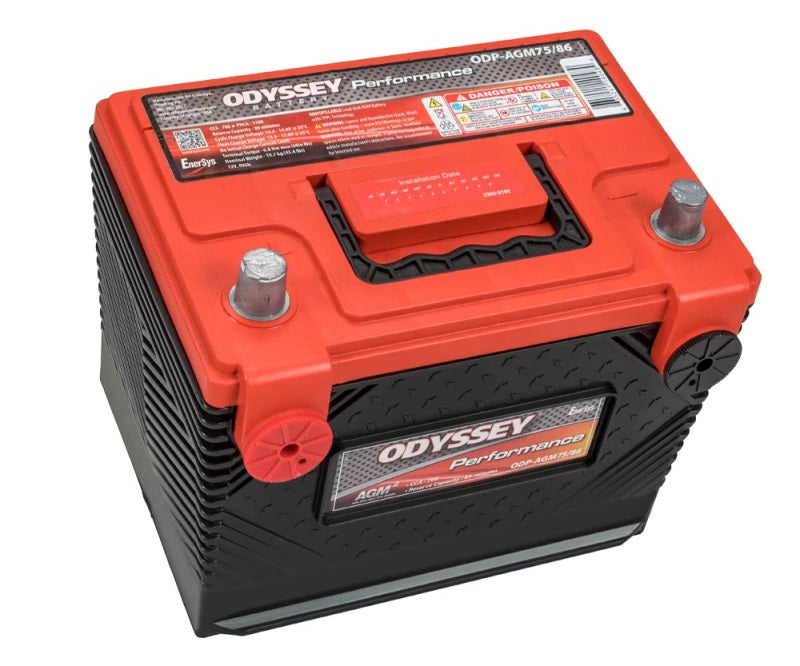

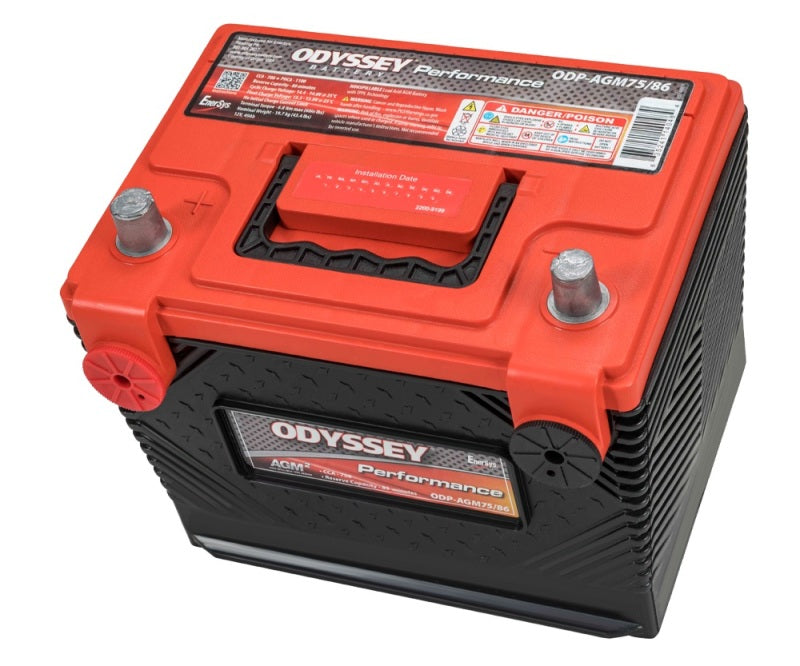

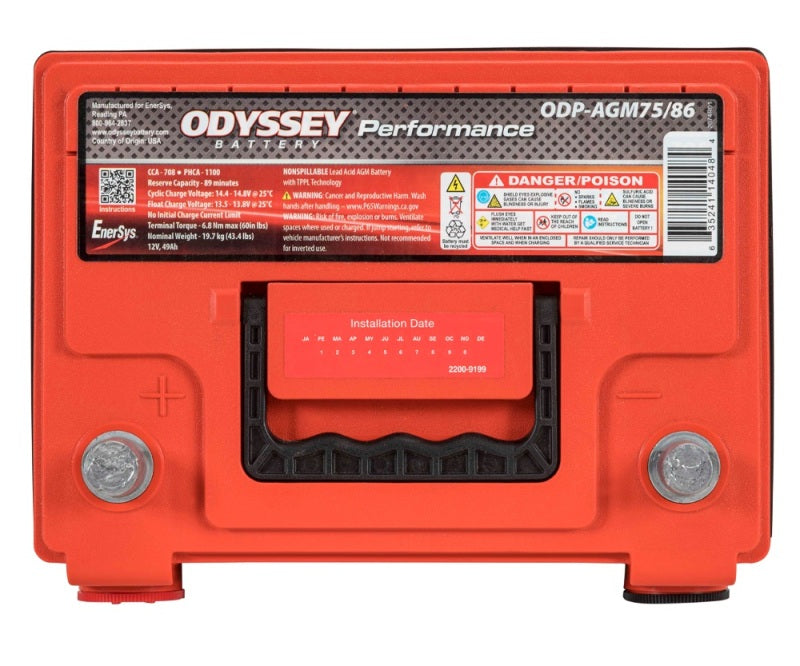

Odyssey Battery Auto/Truck Performance AGM Battery (75/86-705) for C4 Corvette
Odyssey AGM2 batteries are Thin Plate Pure Lead (TPPL) so more plates can fit into the battery. More plates means more power. Odyssey AGM2 TPPL batteries deliver up to twice the power and three times the service life of any other conventional battery to your C4. They outperform standard AGM or SLI (flooded) batteries in terms of power density, fast-charge acceptance, shelf life, durability and most important - value for your money.
This Odyssey Battery fits the C4 Corvette as well as many other vehicles. Check your owner's manual and specifications below for fitment.
Dimensions
| Length | 9.50 in |
|---|---|
| Width | 6.80 in |
| Height (terminals included) | 7.90 in |
| Height (container) | 7.40 in |
| Weight | 43.40 lbs |
Specifications
| Voltage | 12 |
| Pulse (5 second) Hot Cranking Amps (PHCA) | 1100 |
| Cold Cranking Amps (CCA) | 708 |
| HCA | 875 |
| MCA | 760 |
| 20Hr Nominal Capacity (Ah) | 49 |
| 10Hr Nominal Capacity (Ah) | 45 |
| Reserve Capacity Minutes | 89 |
| Terminal | SAE & Side |
| Torque Spec in-lbs (Nm max) |
60 (6.8) side only
|
| Internal Resistance (mΩ) | 2.8 |
| Short Circuit (A) | 2200 |
| Recommended Min. Charging Current (A) | 4.5 |
| Operating Temperature Range |
-40°F / -40°C to 140°F / +60°C
|
| Optimum Storage Temperature | 68°F / +20°C |
| UPC | 635241140484 |
ODYSSEY® batteries are manufactured by EnerSys Energy Products Inc., a wholly owned subsidiary of EnerSys. EnerSys® is a global leader in stored energy solutions for automotive, military and industrial applications. With manufacturing facilities in 17 countries, sales and service locations throughout the world, and over 100 years of battery experience, EnerSys is a powerful partner for automotive, marine, heavy duty equipment and powersports service and parts providers.
Backed by an industry-leading warranty, ODYSSEY® batteries are engineered to deliver 2X the power and 3X the life of conventional flooded lead acid batteries. Manufactured with Absorbed Glass Mat (AGM) Thin Plate Pure Lead (TPPL) technology – or AGM2 – the latest in AGM power, ODYSSEY® batteries are maintenance-free, extreme temperature tolerant and provide ample cranking, even at a low Depth of Discharge (DOD).
ODYSSEY batteries are manufactured to strict quality standards in five facilities globally: Warrensburg, Missouri and Springfield, Missouri in the United States; Newport, Wales in the United Kingdom, and Arras, France.
