Radium C7 Corvette LT1 CCV Fluid Lock Triple Catch Can Kit

Radium C7 Corvette LT1 CCV Fluid Lock Triple Catch Can Kit

The catch can draws out oil and water condensation from the crankcase gasses that would otherwise be drawn into the intake manifold. This prevents oil buildup in the intake, intercooler system walls, throttle body, and intake manifold. This effectively raises the octane, can increase engine performance from cleaner inlet air, and can lower hydrocarbon emissions. The closed system prevents unwanted oil vapors from entering into the cabin. Catch can kits include everything needed for a complete installation.

FLUID LOCK® CATCH CANS

In 2022, Radium Engineering implemented a revolutionary design change to the 7 fluid ounce standard catch can. An inherent problem always existed with typical catch cans when not serviced regularly. The fluid contaminants will eventually leave the reservoir pouring into the air intake system causing poor engine performance. To resolve this issue, Radium created the Fluid Lock® Catch Can. This contains a patented mechanism that prevents the reservoir from overfilling and traps the collected fluids until it is emptied.

FEATURES

• Direct fitment with no drilling required
• Large 10AN ORB inlet and outlet ports
• 4AN ORB drain port
• 2-step oil separation baffling
• O-ring sealed dipstick
• 7 fluid ounce capacity
• Patented Fluid Lock® system

COLLECTION & EMPTYING

The rate that your catch cans will collect oil and moisture contaminants will vary from one individual vehicle to the next, so there is no set emptying interval. PCV catch cans tend to collect more than CCV catch cans. You should check the level of your catch can using the integrated dipstick starting at 3-4 weeks of driving and repeat as needed to determine how often they should be emptied based on what you see.

Catch cans can be emptied by unscrewing the lower reservoir and removing it from the vehicle to dump out, or in cases where there is available space under the catch can, the Petcock Drain Kit can be installed and used to drain them.

In cases where oil collection is excessive you may have to address an issue with the engine. The reasons a catch can will collect an excess of oil include

• Excessive blowby from engine damage

• Crankcase windage from an over-full oil level
• Poor placement of breather ports and/or poor baffling inside breather ports

• PCV valve not closing and leaking under heavy load

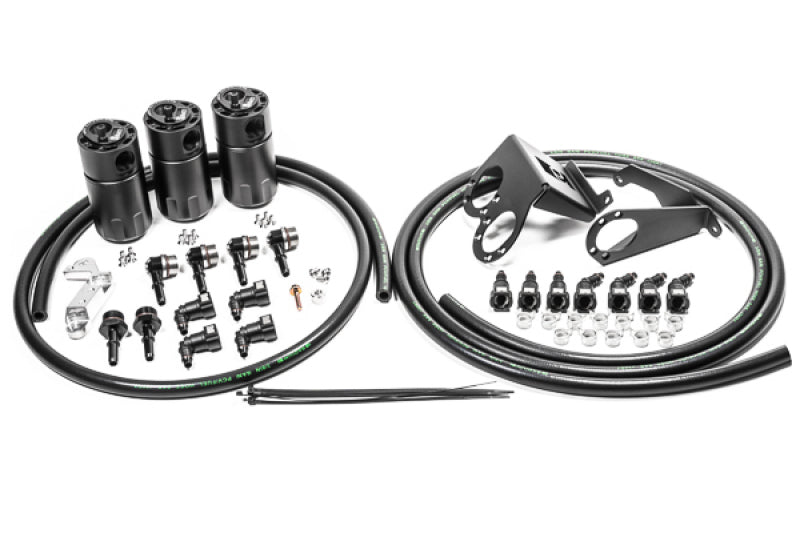

This triple catch can kit includes both the PCV and dual CCV catch can kits for the ultimate in engine protection.

INCLUDES

• Baffled oil catch cans with integrated condenser and dipstick
• Anodized aluminum mounting brackets
• Polished billet aluminum ground plate
• SAE quick connect fittings
• Stainless mounting hardware
• 3/8" PCV rubber hose
• Spring clamps

This Part Fits:

Since 2010, Radium Engineering has used it's unique approach to problem solving to design and produce high quality aftermarket automotive performance products. By not only focusing on functionality, but also the design details, Radium products have excelled in an industry full of low quality copy-cats and knock-offs.

Radium Engineering relies on a core team with a passion for innovation to lead the company toward advancement in the industry. All Radium products are carefully planned with thorough R&D and designed in-house using the latest computer simulation and modeling techniques. Extensive testing and evaluation ensures the performance of Radium products exceed consumer expectations. For these reasons, a rapidly growing  list of top motorsports competitors and enthusiasts worldwide rely on Radium Engineering products.

Currently, Radium offers an expanding collection of motorsport parts and accessories for high performance and racing applications, focusing on their revolutionary fuel delivery products, fuel cells and PCV oil catch can systems. A growing collection of application specific parts are also being created.
Radium Engineering is owner operated and based in Clackamas Oregon, USA.
